Brief introduction

Horizontal centrifugal slurry pump. It is suitable for conveying abrasive or corrosive slurry in industrial sectors such as metallurgy, mining, coal, power, and building materials.

Features

1. It is equipped with replaceable wear-resistant metal inner lining or rubber lining, and the impeller can be made of wear-resistant metal or rubber materials. Applicable to different working conditions.

2. Within the allowable pressure range, this type of pump can also be used in series in multiple stages.

3. The shaft seal can adopt packing seal, auxiliary impeller seal and mechanical seal.

4. The outlet position of the pump can be installed and used at eight different angles with 45° intervals as required.

5. The pump and the drive machine can be connected in various forms such as direct coupling drive, V-belt drive, hydraulic coupling drive, and reducer drive.

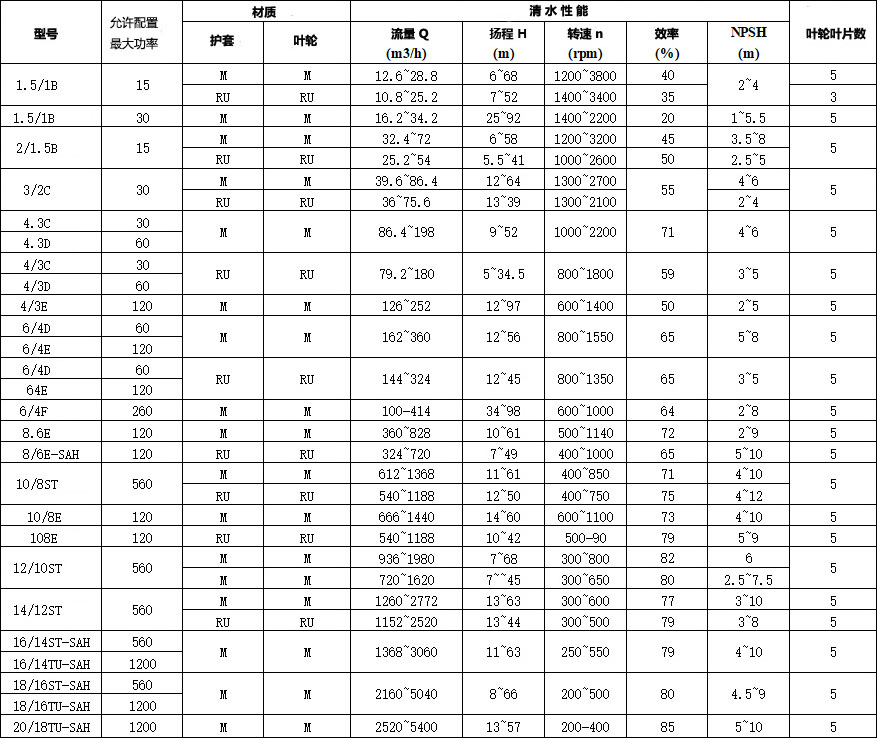

Product parameters
