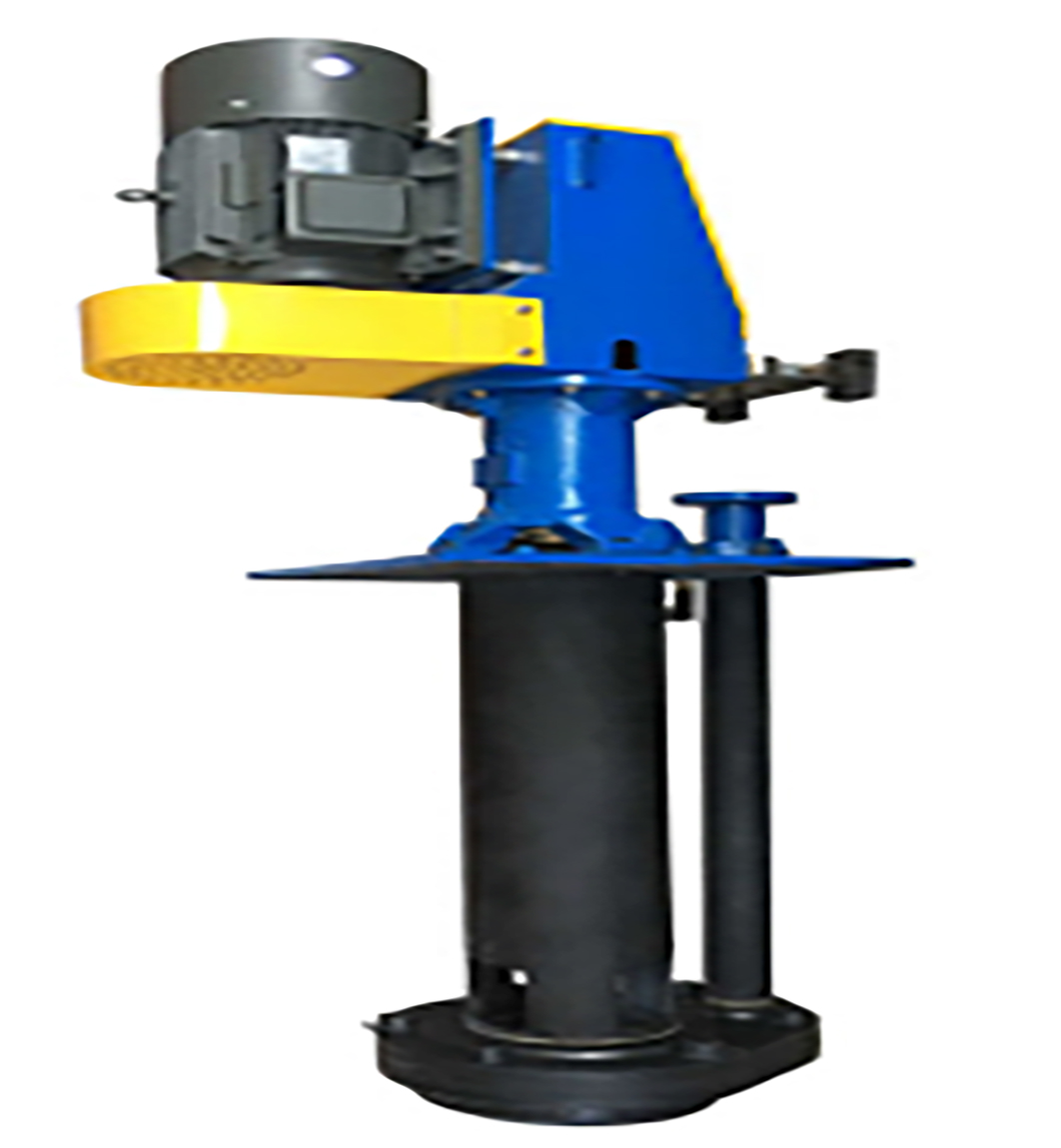

SP-Vertical Slurry Pump

Brief introduction

SP-vertical submersible pump is a vertical centrifugal structure, and the material of the flow-through parts can be made of wear-resistant metal or rubber. It is suitable for conveying submerged, abrasive, coarse-grained and high-concentration slurries in metallurgy, mining, coal, electric power and other industries.

Features

SP type submerged pump is a new product researched and developed by our company on the basis of widely absorbing the advanced technology of similar products at home and abroad, and using modern design methods. Coarse particle, high concentration slurry. It does not need any shaft seal and shaft seal water, and it can work normally under the condition of insufficient suction.
SP pump flow parts are made of wear-resistant metal.
The submerged parts of the SPR pump have rubber outer linings, which are suitable for conveying abrasive slurries without edges and corners.
The letters in the model number are submerged pumps with extended shafts, which are suitable for working conditions with deep liquid level. This pump adds a guide bearing structure on the basis of the standard pump, which runs more smoothly and is more widely applicable. However, it is necessary to attach flushing water to the guide bearing.
It adopts vertical cantilever type and single pump casing structure.

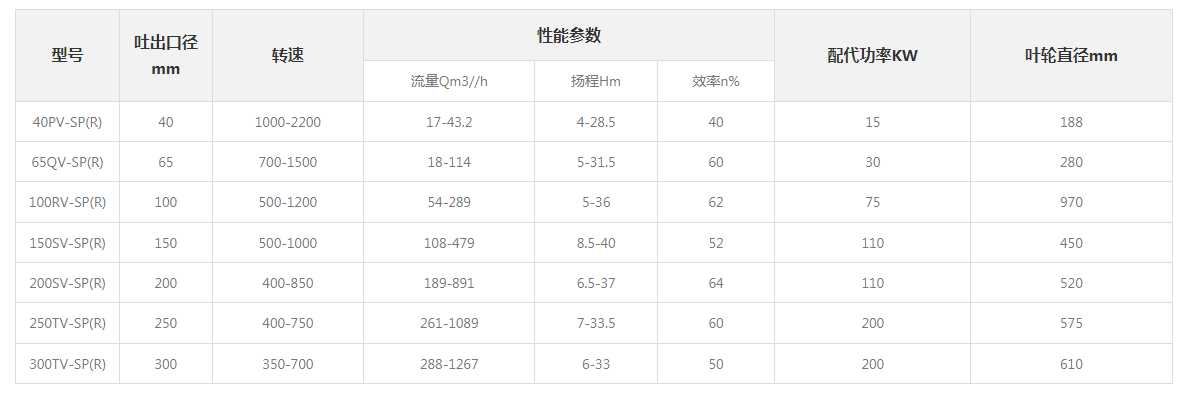

Performance parameters
