TX Vertical foam pump

Brief introduction

Pump Type： Vertical centrifugal slurry pumps

Drvie Type： BD/DC

Power： Motor

Discharge Size： 50mm-200mm

Capacity： 2-160l/s

Head： 5m-30m

Features

Taoxi foam pumps are suitable for handling solids-liquid mixtures, special for delivering frothy pulp generated in flotation machines in metalliferous and coal flotation circuits.

The basic principle of the Taoxi foam pump operation is to delete or partially delete the froth before the slurry enters the pumping. Its handling capacity is much higher than that of other types of slurry pumps without shaft seal and sealing water. It is a perfect pump for handling frothy pulp.

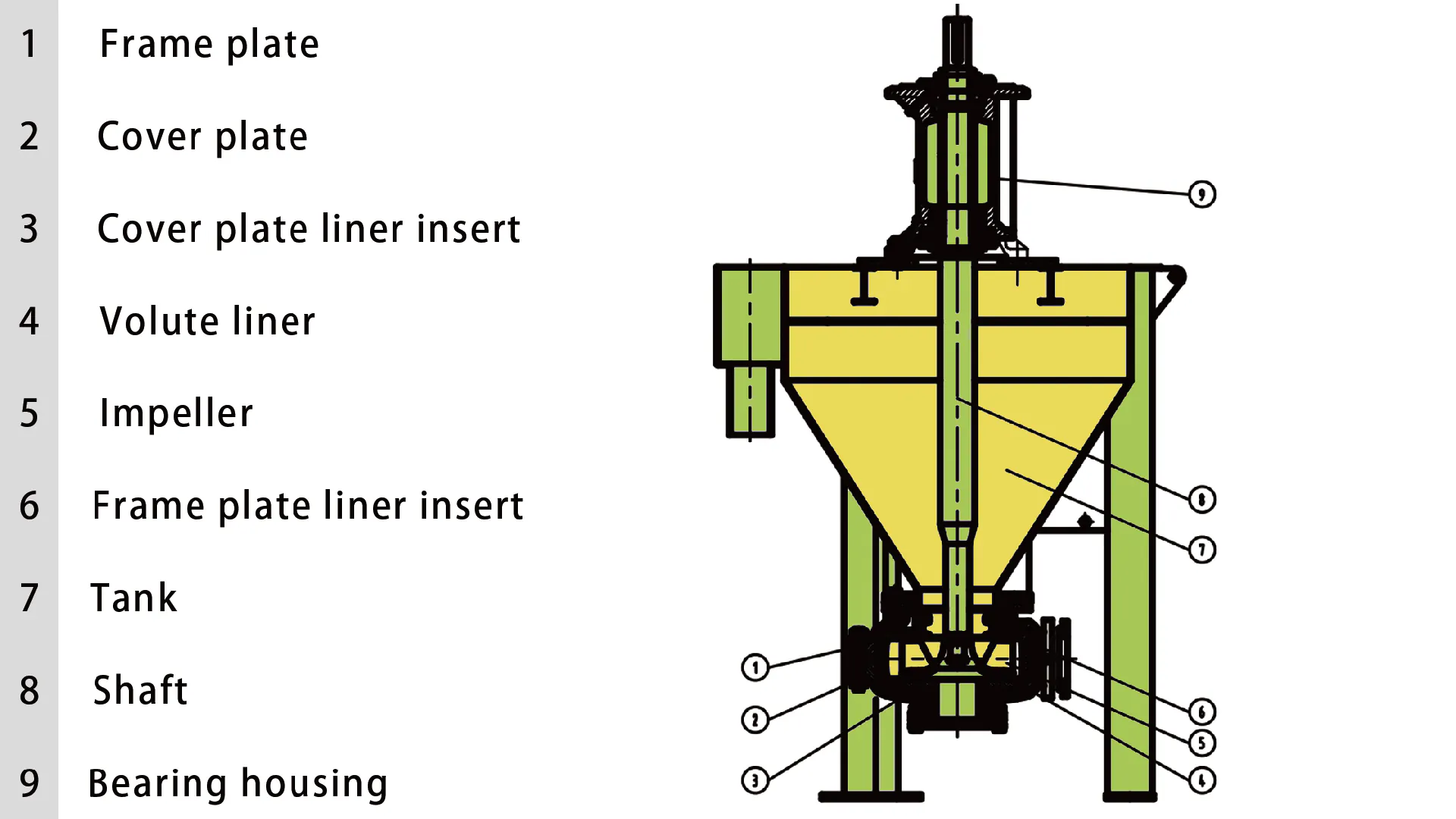

The construction of the pump head is double casings. All wet parts can be supplied in Ni-hard, high chrome alloy iron, and pressure-molded natural or synthetic rubber. The hopper tank is fabricated with a steel plate. The inner wall of the tank can be covered with liner according to different mediums pumped. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications. The advantages of the Taoxi foam pump are excellent performance easy assembly & disassembly, high reliability, etc.

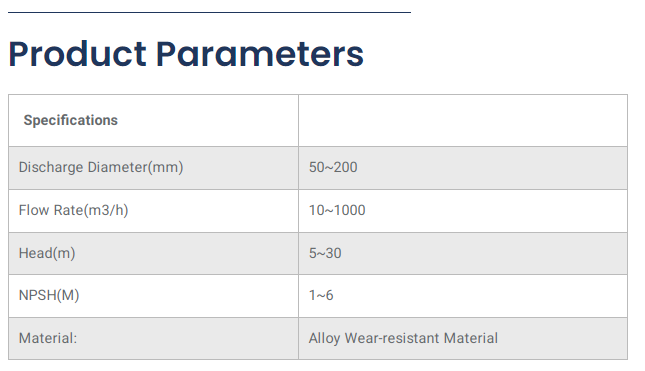

Product parameters
